Nozzle vs Bonded vs Tank Megasonic: How to Choose for Online vs Batch Cleaning

1. Why Megasonic Is the "Low-Damage" Answer for Precision Cleaning

Megasonic cleaning drives liquid with a high-frequency mechanical wave around the 1 MHz band, removing sub-micron to nano-scale particles with little risk to the workpiece surface, which is why it is common for chip terminal cleaning and post-CMP cleaning. Compared with conventional 20 kHz–200 kHz ultrasonic cleaning, megasonic (typically 0.8–3 MHz) no longer relies on violent bubble implosion (cavitation). Instead it uses acoustic streaming and gentle micro-cavitation to sweep the surface—smaller bubbles, milder energy, able to dislodge fine particles without damaging fragile chip structures[1][3].

In short: ultrasonic is like "blasting dirt with bubbles"—strong but potentially surface-damaging; megasonic is like "gently flushing dust with a high-speed micro-flow"—precise and suited to precision parts. In semiconductor wet processes, megasonic is often paired with SC-1, DHF and other chemistries to remove slurry residues and sub-micron particles in post-CMP, developing, stripping and metal-lift-off steps[3][4].

2. Nozzle, Bonded, or Tank: What Actually Differs

Megasonic cleaning has evolved into three integration forms: a nozzle (spray head) for online jetting, a bonded head placed close to the workpiece, or a tank-integrated immersed diaphragm for batch processing. The core difference is "how the acoustic field reaches the workpiece," which directly determines online vs batch, local vs large-area, and the consumables/integration approach[1].

These three forms are not "which is better" but "which fits your process window." The selection logic below helps you map it.

3. Nozzle Megasonic: The Workhorse for Online Local Cleaning

If your line needs to remove fine particles from wafers or parts online, locally, and continuously, nozzle (spray/jet) megasonic is usually the first choice. Its acoustic field is delivered through a flow-guided nozzle directly onto the surface, theoretically reducing re-attachment of released particles and integrating easily into existing wet-bench piping or suspension points[1].

Take the HaKeDi (HKD) HKD-Jet-1M60W nozzle-type megasonic module as an example: 1 MHz operating frequency, 60 W max (5–60 W adjustable), 220VAC±10% supply; supports real-time frequency tracking (PLL mode), constant-power stable output, automatic operating-frequency correction, waveform modulation with custom trajectories, and online monitoring[1]. For communication it provides RS485, USB, Ethernet, I/O control, 24VDC external start, and local touch-LCD operation for easy machine automation. Transducer carrier material is PEEK / quartz, suspended mounting, generator size 435×290×170 mm, supports liquid temperature <80℃ (standard version), and can be non-standard customized per customer application.

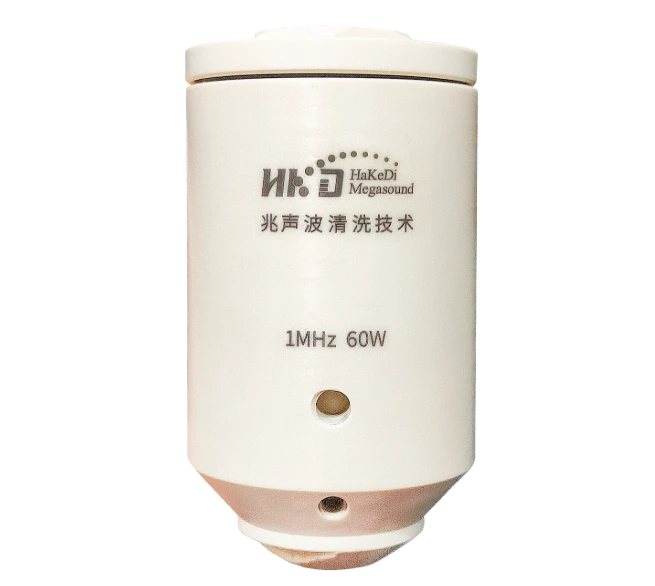

Figure: HaKeDi HKD-Jet-1M60W nozzle-type megasonic module (1 MHz / 60 W), for online local precision jet cleaning.

The nozzle power window (5–60 W) is tightly coupled with flow rate: too low flow under-covers the field, too high wastes energy and fluid, so flow, power and frequency should be tuned together as selection variables.

4. Bonded and Tank: What Each Is For

When you need the transducer near the workpiece, with a more uniform field and larger acting area, look at bonded first; when your process is a tank machine with batch immersion of multiple wafers, look at the tank diaphragm[1].

• Bonded (e.g., HaKeDi HKD-MegPie-1M250W): 1 MHz, 250 W max (5–250 W adjustable), transducer carrier material PEEK / sapphire single crystal, source-to-workpiece distance at mm scale, suited to sapphire and optics where field uniformity matters.

• Tank (e.g., HaKeDi HKD-STank-1M800W / HKD-MTank-1M1200W): 1 MHz, 800 W / 1200 W class, diaphragm rated power matched to wafer size (e.g., 12 inch → 2400 W diaphragm), suited to CMP, pre-grind, coating, stripping, developing batch wet steps.

Conventional ultrasonic cleaners are covered by standards such as GB/T 23953 (typical 20 kHz–40 kHz band); megasonic operates far above that, as the high-frequency extension of ultrasonics, with particle-removal capability ordinary ultrasonics cannot reach[2].

5. Selection Logic: Ask the Process First, Then the Form

To select a megasonic form, first answer three questions: online or batch? local or large-area workpiece? how high is the field-uniformity requirement? Then land on a model and power window.

• Online, local, wafer surface particles → prefer Nozzle (HKD-JET); check 5–60 W window and flow match.

• Near-workpiece, want uniform field → prefer Bonded (HKD-PIE); check 5–250 W and carrier material.

• Tank machine, batch immersion → prefer Tank (HKD-TANK); select by 6/8/12 inch diaphragm power class.

• Panels, sapphire, optical planar rinsing → prefer Water-curtain / Shower (HKD-SHOWER) (this comparison focuses on the three mainstream forms).

• Pain point is frequency drift / uneven cleaning → emphasize PLL tracking / constant power / sweep on the generator.

In one line: nozzle wins on online-local and anti-re-deposition, bonded on uniform field and large area, tank on batch throughput—decide by your line tempo and workpiece shape; most high-end precision cleaning ends up at "form + 1 MHz + controllable power window."

FAQ

Q1: How do megasonic and ultrasonic differ?

A：The core is frequency and mechanism. Ultrasonic (typically 20 kHz–200 kHz) removes soil by bubble implosion (cavitation)—strong but can damage precision structures. Megasonic (typically 0.8–3 MHz, commonly 1 MHz) relies on streaming and micro-cavitation, milder energy, excels at sub-micron/nano particles with low damage[1][3].

Q2: How to choose nozzle vs bonded?

A：It is about "how the field reaches the workpiece." Need online, local, continuous jet with anti-re-deposition → nozzle; need transducer near workpiece, more uniform field, larger area → bonded[1].

Q3: How does tank diaphragm power map to wafer size?

A：HaKeDi tank diaphragms match rated power to size, e.g., single 6 inch 600 W, single 8 inch 1200 W, 12 inch 2400 W; in batch immersion select by wafer diameter and capacity[1].

Q4: Why is ≥1 MHz often cited for advanced packaging / post-CMP?

A：The ≥1 MHz band gives strong streaming with weak cavitation impact, removing sub-micron particles without harming fragile structures (low-k, FinFET), making it the common frequency window for terminal and post-CMP cleaning[1][3].

Q5: What field problems do PLL and constant power solve?

A：Load, temperature and liquid-level changes drift the transducer resonance, causing uneven cleaning or damage. PLL real-time tracking + constant-power output hold the set power and efficient output under load variation, improving long-term stability[1].
