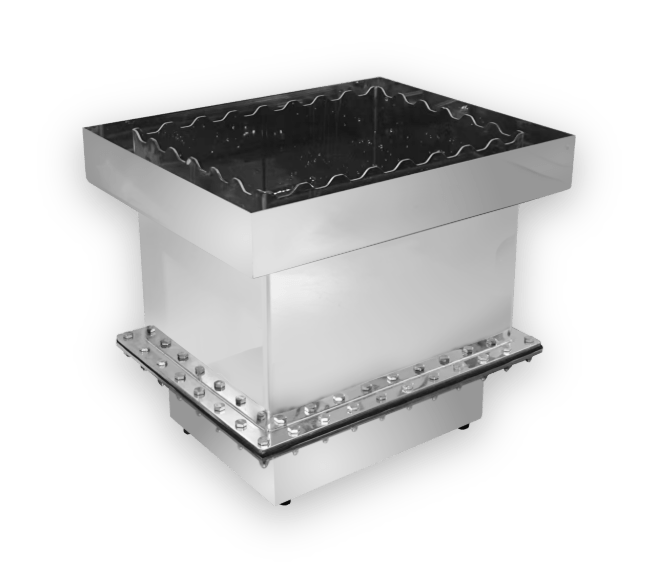

HKD-MTank-1M1200W

Home > Product > Trough-type Megasonic Wave > Multi-piece Sink > HKD-MTank-1M1200W

Constant power stable output

Real-time frequency tracking (PLL)

Automatic frequency correction

Online monitoring of cleaning quality

Waveform Modulation and Custom Track

Frequency sweep driver function

We have the capability to customize products to meet specific customer needs.

Product Information - Key Parameter Table

Understand key parameters and choose the right product.

Key parameters
Model HKD-MTank-1M1200W
Frequency 1MHz
Maximum power 1200W
Power adjustment 10-1200W
Power supply voltage 220VAC±10%
Frequency tracking/ adaptive adjustment/ frequency calibration/ constant power/ waveform modulation/ online monitoring Support
Control method Local button operation, remote communication control
Communication methods RS485, USB, Ethernet communication control, I/O port control
External control start interface 24VDC
Display method Touch LCD display
Installation method Embedded installation
Generator operating environment 0～40℃,0～90%RH
Generator size Generator: 431439149.5mm; Transducer: Customized according to user requirements
Transducer carrier method Adhesive to the back of the bottom of the cleaning tank
Transducer carrier material 316L stainless steel or quartz
Supports liquid temperature (standard version) ＜80℃
