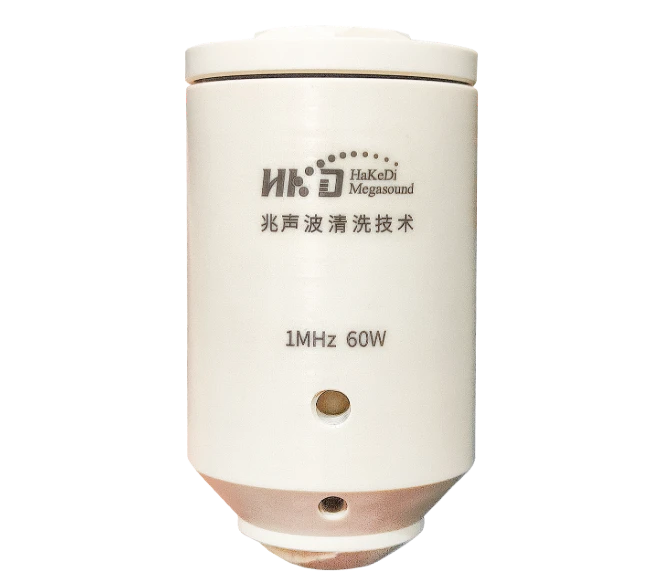

HKD-Jet-1M60W

Home > Product > Megasonic Nozzle > Megasonic Nozzle > HKD-Jet-1M60W

Real-time frequency tracking (PLL mode)

Constant power stable output

Automatic frequency correction

Waveform Modulation and Custom Track

We have the capability to customize products to meet specific customer needs.

Product Information - Key Parameter Table

Understand key parameters and choose the right product.

Key parameters
Model HKD-Jet-1M60W
Frequency 1MHz
Maximum power 60W
Power adjustment 5-60W
Power supply voltage 220VAC±10%
Frequency tracking/ adaptive adjustment/ frequency calibration/ constant power/ waveform modulation/ online monitoring Support
Control method Local button operation, remote communication control
Communication methods RS485, USB, Ethernet, I/O control
External control start interface 24VDC
Display method Touch LCD display
Installation method Suspension
Generator operating environment 0～40℃,0～90%RH
Generator size Generator: 435290170mm; Transducer: Φ36/41/46*70mm
Transducer carrier method Suspension
Transducer carrier material PEEK/Quartz
Supports liquid temperature (standard version) ＜80℃
